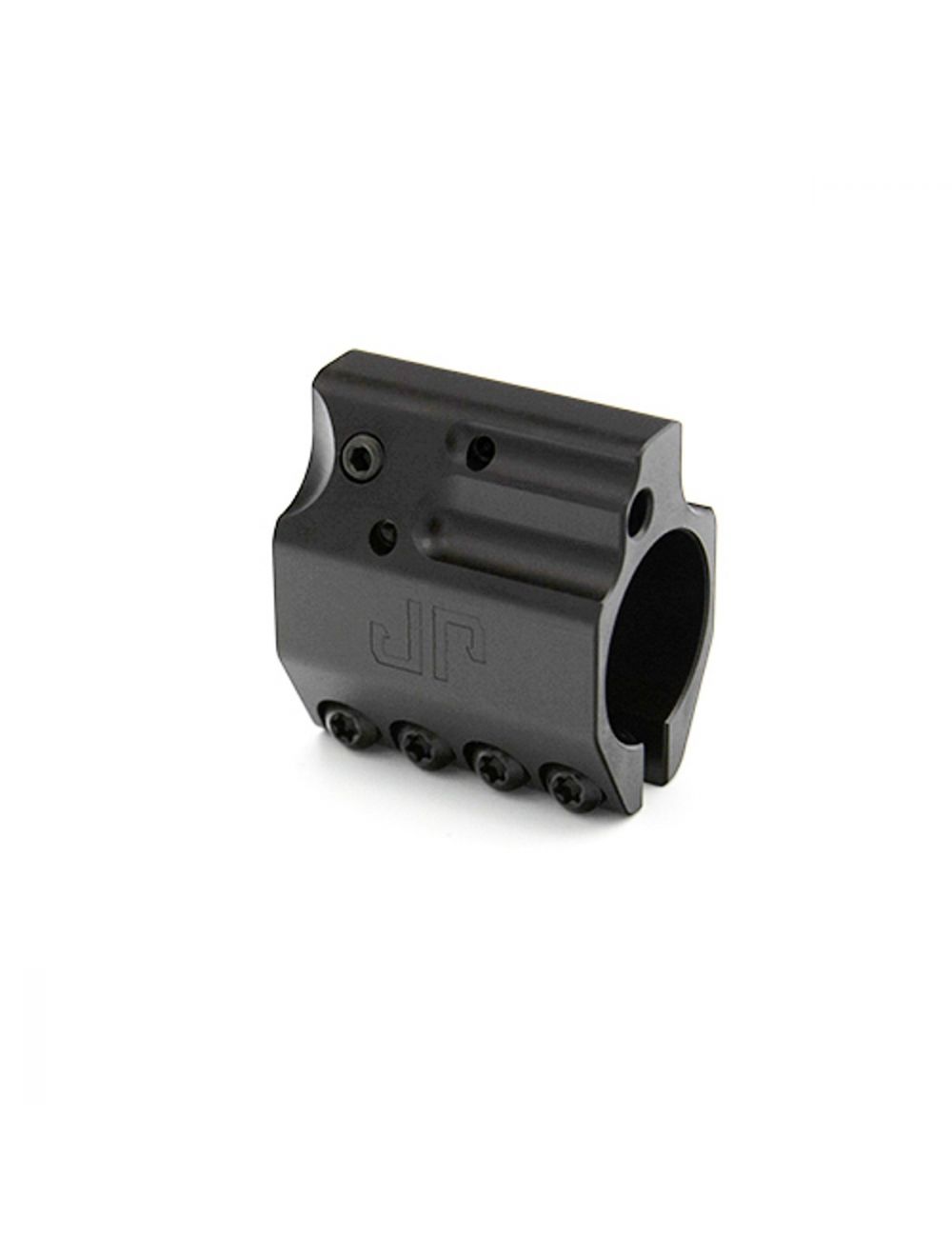

JP ADJUSTABLE GAS SYSTEM – .750 BORE

Description

• PRODUCT DESCRIPTION

  The JPGS-5B model is our minimized small bore design intended to mount underneath many hand guard models on the market.

  This model also now includes the locking adjustment feature, which consists of an integral brass set screw that can be tensioned against the adjustment screw after it has been set to prevent any migration that might occur.

  FEATURES:

  • Full coverage around gas port providing improved seal and better heat dissipation
  • True clamp-on design with four positive clamping screws
  • Easy to access side gas adjustment

  TECHNICAL SPECIFICATIONS:

  • Barrel Diameter: .750
  • Material: 416 stainless
  • Finish: Black
  • Weight: 2.25 oz.
  • Length: 1.28″
  • Height: 1.4″ (overall), .78″ (over bore)
  • Width: .89″
  • Attachment: 6-32 x 3/8″ socket head screws, T15 Torx drive (included)
  • (includes 5/64 x 5/16 roll pin for gas tube installation)
  • Adjustment: 6-32 x 3/8″ set screw, 1/16 hex drive (included)
